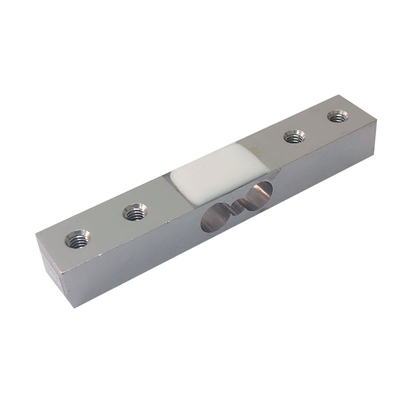

Name: Wide Range Good Quality 1-25kg Micro Aluminum Micro Load Cell For Sale
Brand: Wide Range Good Quality 1-25kg Micro Aluminum Micro Load Cell For Sale
SKU: CL611F
Price: 1 USD
Availability: InStock
Rating: 4.8 (128 reviews)

特徴ギャラリー製品の説明見積依頼

特徴

仕様

Model Number: CL611F

Usage: weight sensor

Theory: Resistance Sensor

Output: Analog SENSOR

Function: Weight Function

Capacity: 1-25kg

Material: Aluminum Alloy

Warranty: 12 Months

Application: Wide Range

基本情報

Model Number: CL611F

お支払配送条件

Packaging Details: Cartons

Supply Ability: 100000 Piece/Pieces per Month

製品の説明

Rated load (kg): 1-25

Main features: The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation.

Parameters:

Comprehensive error	0.02& 0.05%F.S.
Zero output	±0.1 (mV/V)
Rated output	1±0.15(mV/V)
Non-linearity	0.03&0.05%F.S.
Hysteresis	0.03&0.05%F.S.
Repeatability	0.03&0.05%F.S.
Input resistance	1000±15(Ω)
Output resistance	1000±10(Ω)
Creep	0.05%F.S (3min)
Operating temperature	-10~+40(°C )
Temp. effect on zero	0.03&0.05%F.S/10°C
Temp. effect on sensitivity	0.03&0.05%F.S/10°C
Insulation resistance	≥2000 (MΩ)
Excitation voltage	5~10(VDC)
Ultimate overload	150%F.S
Wiring schematic diagram	Red: Input (+) White: Output (-) Black: Input (-) Green: Output (+)
Four corner error	±0.1%F.S.
Cable (mm):	Φ0.8×200

Installation size (mm):
